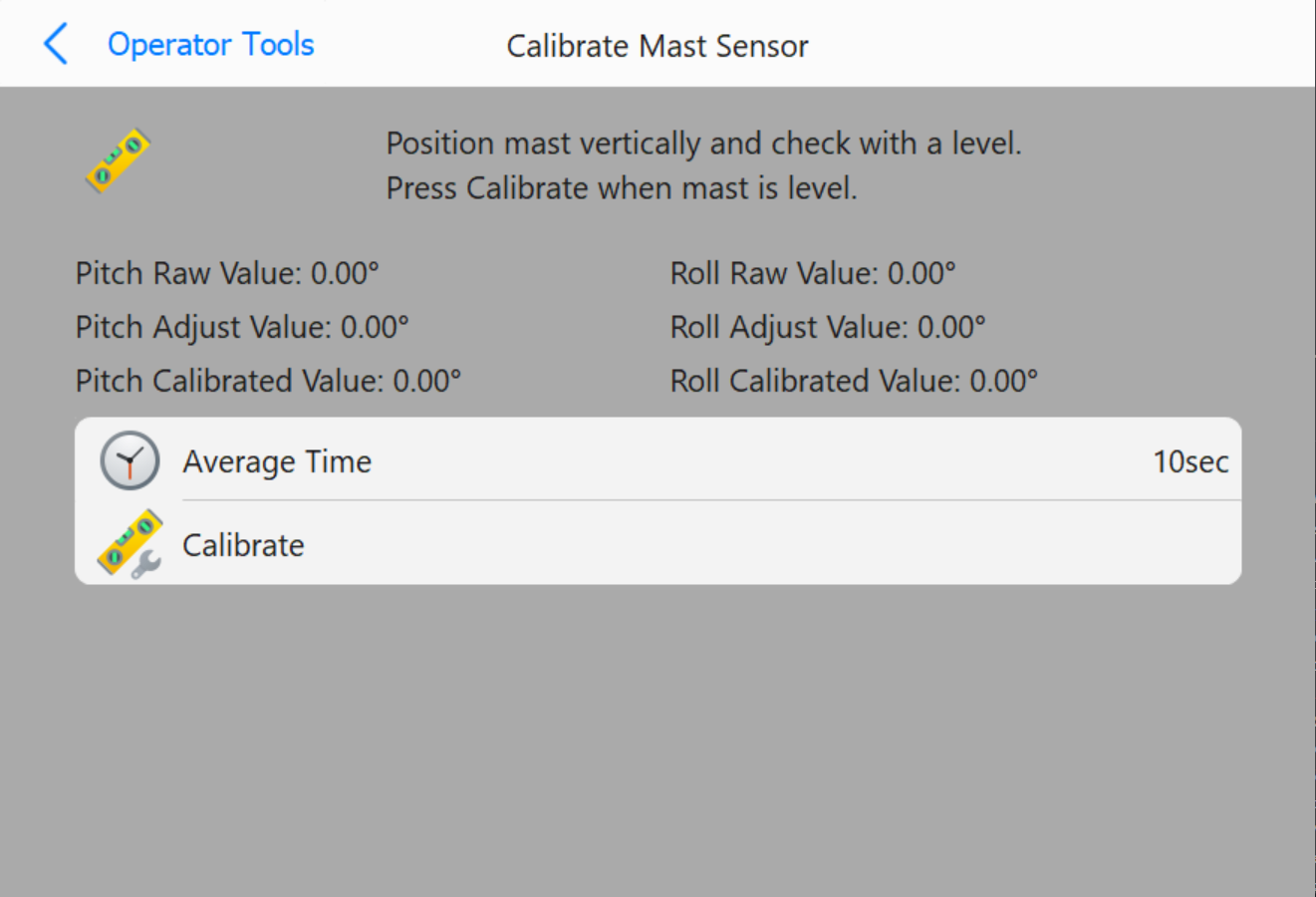

It is common for mast tilt sensors to require calibration after performing work on a number of piles. This dialog allows the operator to quickly calibrate the mast sensor to a particular angle. The default calibration is 0.0° (plumb vertical). To calibrate to a specific angle, see Sensor Calibration Dialog
Workflow
To calibrate the mast tilt sensor:
Using a bubble level, maneuver the mast such that it is plumb level.
(optional) Set the calibration time. A longer calibration time can help improve calibration accuracy, but the default 10.0 seconds is usually sufficient.
Tap the Calibrate button. DO NOT operate the machine while Grade is calibrating the sensor.
Buttons
Average Time: Set the time over which the sensor values are averaged during calibration.
