Sensor Offsets

This section calculates the laser sensor.

Note: This menu is part of the wizard and should only be performed by a qualified technician.

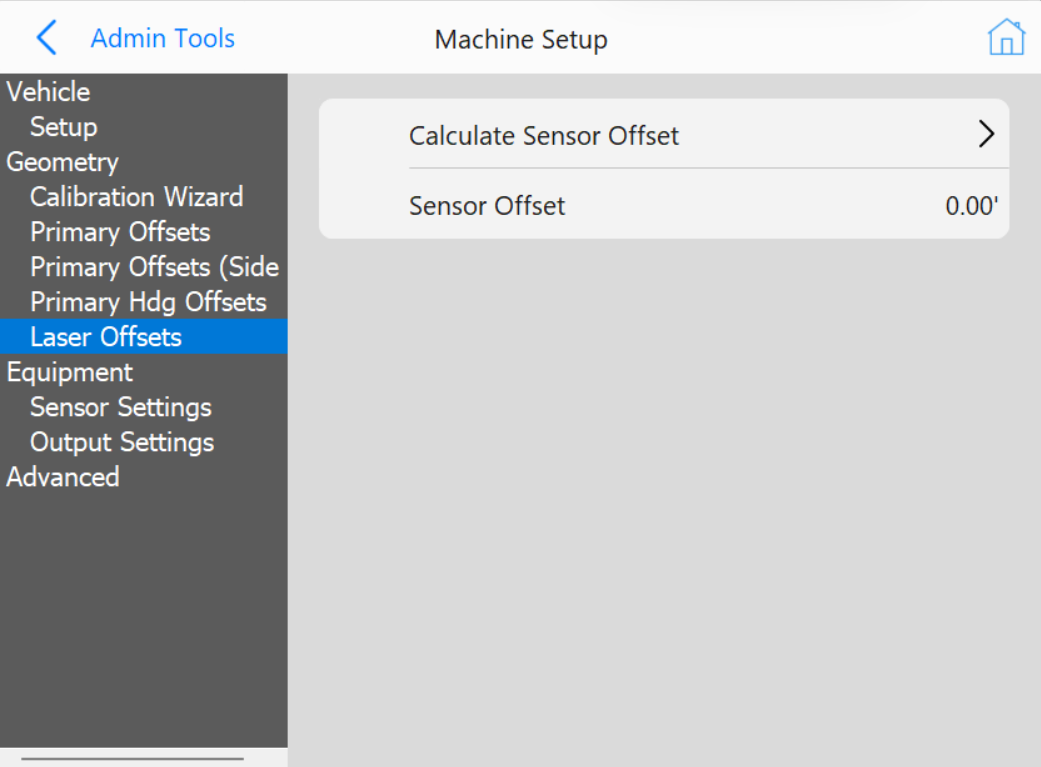

Sensor Offsets
Laser Calibration
  1. Press Calculate Sensor Offset.
  2. Enter the Pile Height or choose it from a points file.
  3. Press Calculate Antenna to Hammer Distance.

PD Grade will then fill in the sensor offset.
