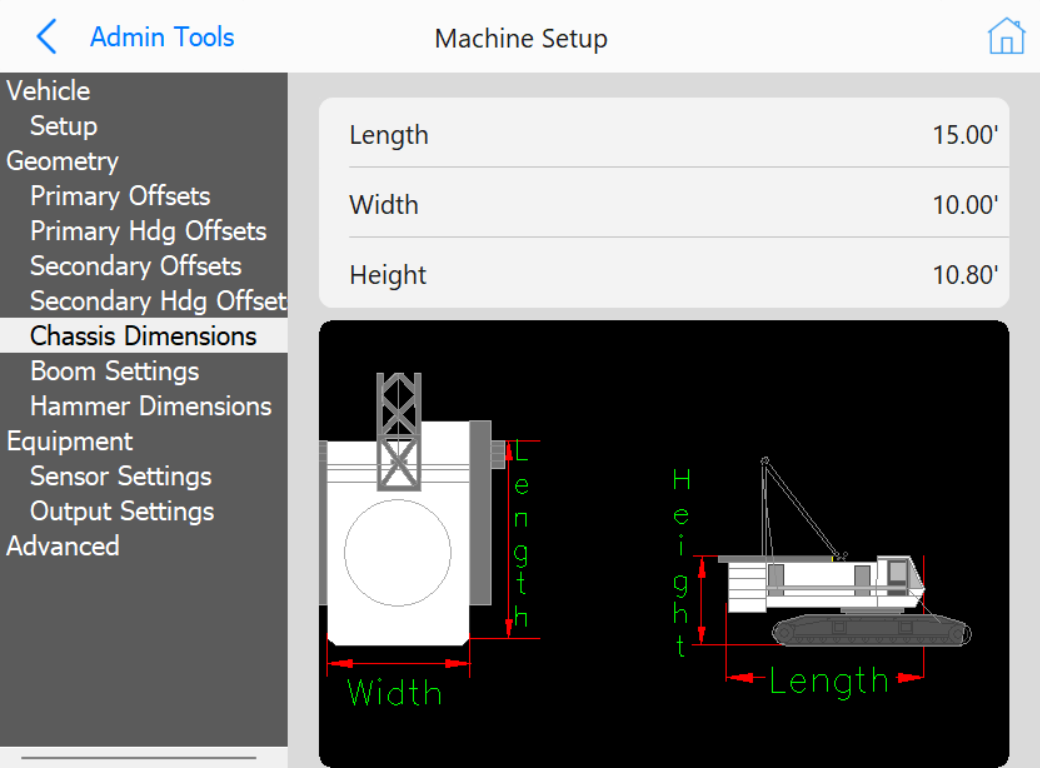

Chassis Dimensions

Length: Length of the machine tracks.
Width: Width of the machine from outside of track to outside of track.
Height: Distance from ground to top of cab.

These dimensions are for icon scaling. See the diagram for further clarification.
