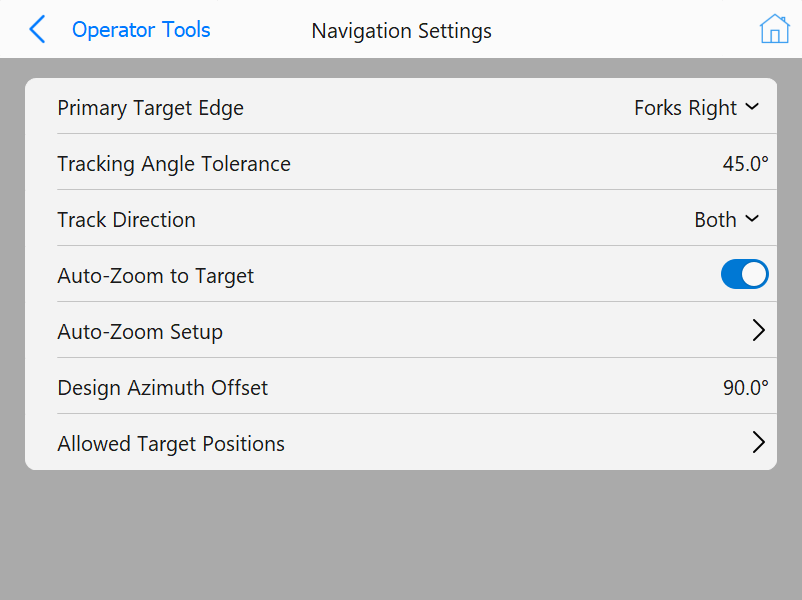

The Navigation Settings define the parameters for pile designs to be targeted.
Parameters
- Primary Target Edge: Set point on the machine to target the design location
- Tracking Angle Tolerance: Set the size of the cone in front of the target to select the next pile
- Track Direction: Set the direction of travel of the machine while placing piles
- Auto-Zoom to Target: Auto-zoom to target position as machine approaches target
- Auto-Zoom Setup: Setup the zoom levels for the auto-zoom
- Design Azimuth Offset: Offset the pile design azimuth for placing piles (ie. 90° to lay piles East-West for a North-South design)
- Allowed Target Positions: Toggle machine positions available to use as target position
