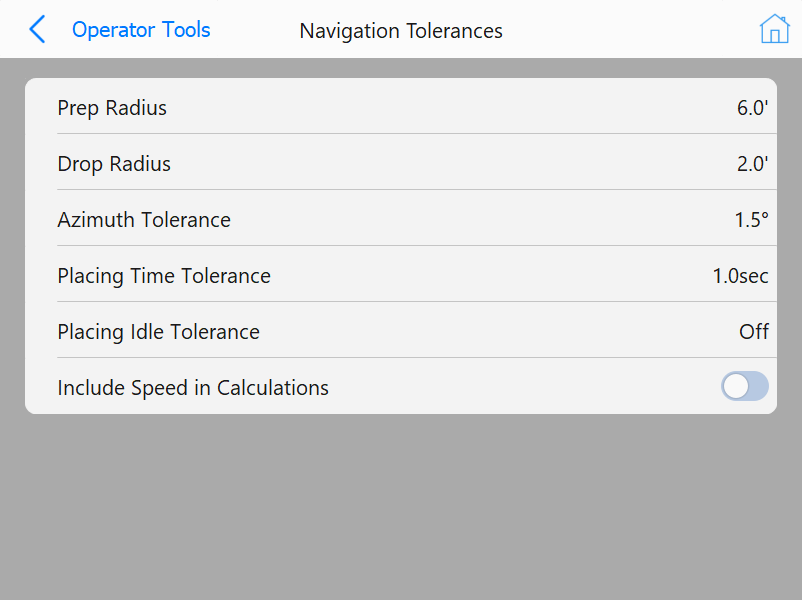

The Navigation Tolerances define acceptable deviations for pile placement. Properly configuring these tolerances ensures accurate positioning for operator guidance.
Tolerance Parameters
- Prep Radius: Set the radius around the target position to prepare to place the pile. Will be a yellow circle in the main view
- Drop Radius: Set the radius around the target position to allow a pile to be marked as placed. Will be a green circle in the main view
- Azimuth Tolerance: Set the pile azimuth (heading or rotation) tolerance
- Placing Time Tolerance: Set minimum amount of time in the drop radius for a pile to be marked as placed
- Placing Idle Tolerance: Set the amount of time a machine can be idle before auto-placing is turned off
- Include Speed in Calculations: When toggled on, the prep and drop radius will expand depending on the speed of the machine
