Pile KPI

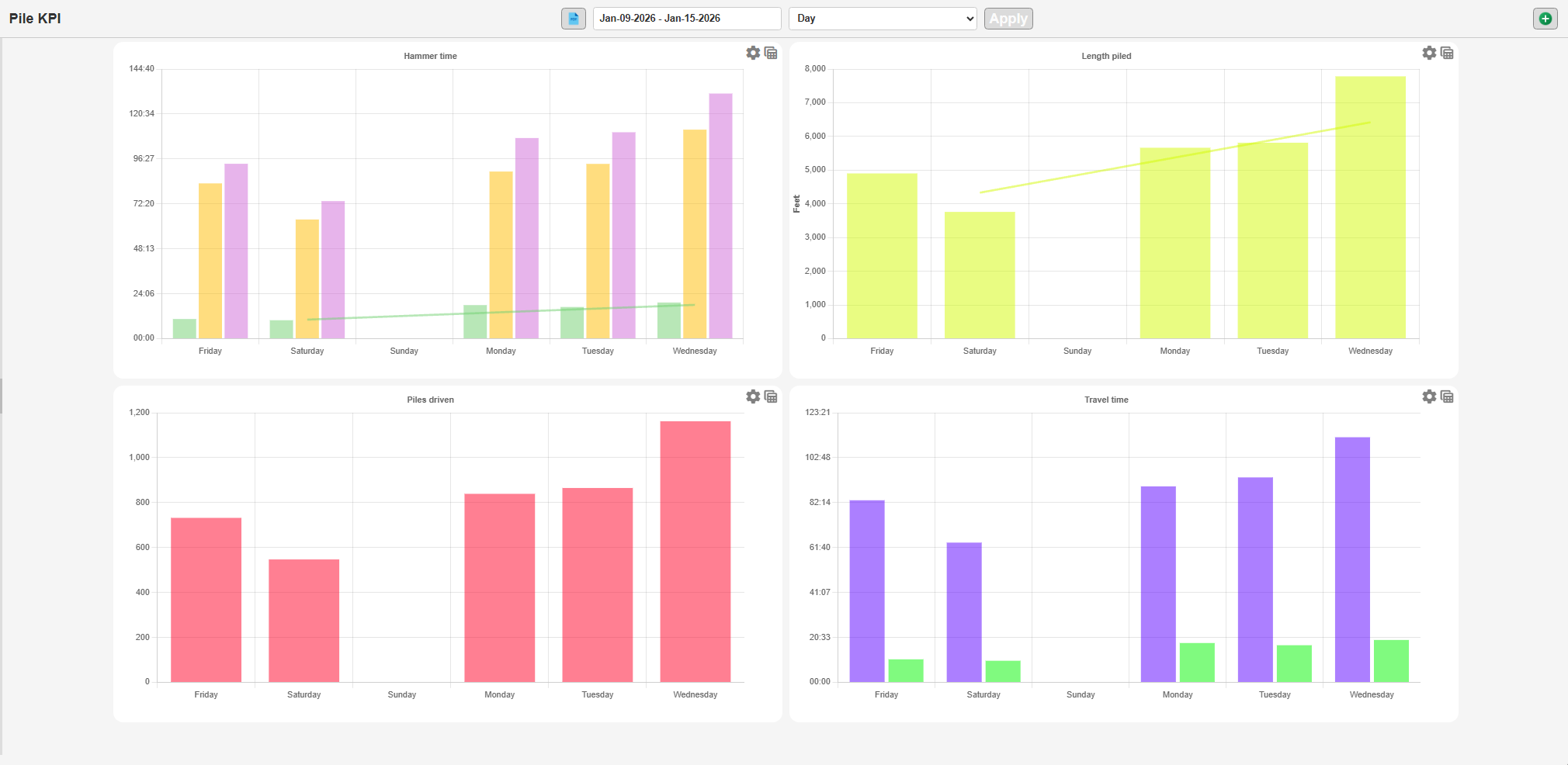

The Pile KPI tab displays the KPI tiles created in the KPI page from the button in the right section of header buttons.

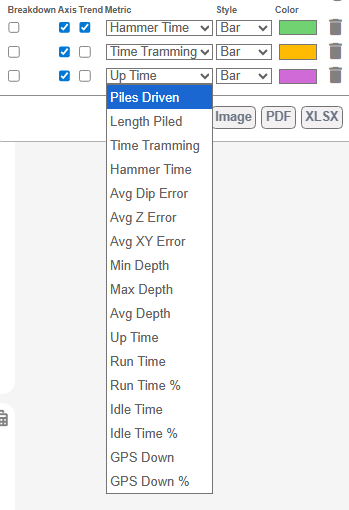

Pile Metrics
- Piles Driven - The number of piles driven
- Length Piled - The length of piles driven
- Time Tramming - Time spent between driving piles. See the time breakdown.
- Hammer Time - The time spent hammering. See the time breakdown
- Avg Dip Error - Average error of piles driven on the dip angle
- Avg Z Error - Average error in the elevation of the piles driven
- Avg XY Error - Average horizontal error of the piles driven
- Min Depth - The lowest elevation of a pile driven
- Max Depth - The highest elevation of the piles driven
- Avg Depth - The average elevation of the piles driven
- Up Time - All of the time the machine was “ON” with Carlson PD Grade running.
- Run Time - Run time is a measure of movement. This is all of the time the machine was moving.
- Run Time % - Percent of the total time that the machine was moving.
- Idle Time - Idle is a measure of the movement of the machine. This is time the machine was sitting still but was still powered “ON”
- Idle Time % - Percent of the total time that the machine was still.
- GPS Down - This is the total time the machine was not operational due to GPS errors. Any errors like “No Position,” “GPS Float,” “Sensor Disconnected,” etc
- GPS Down % - Percent of the total time that the machine was down due to GPS Errors.
