Pile Dashboard

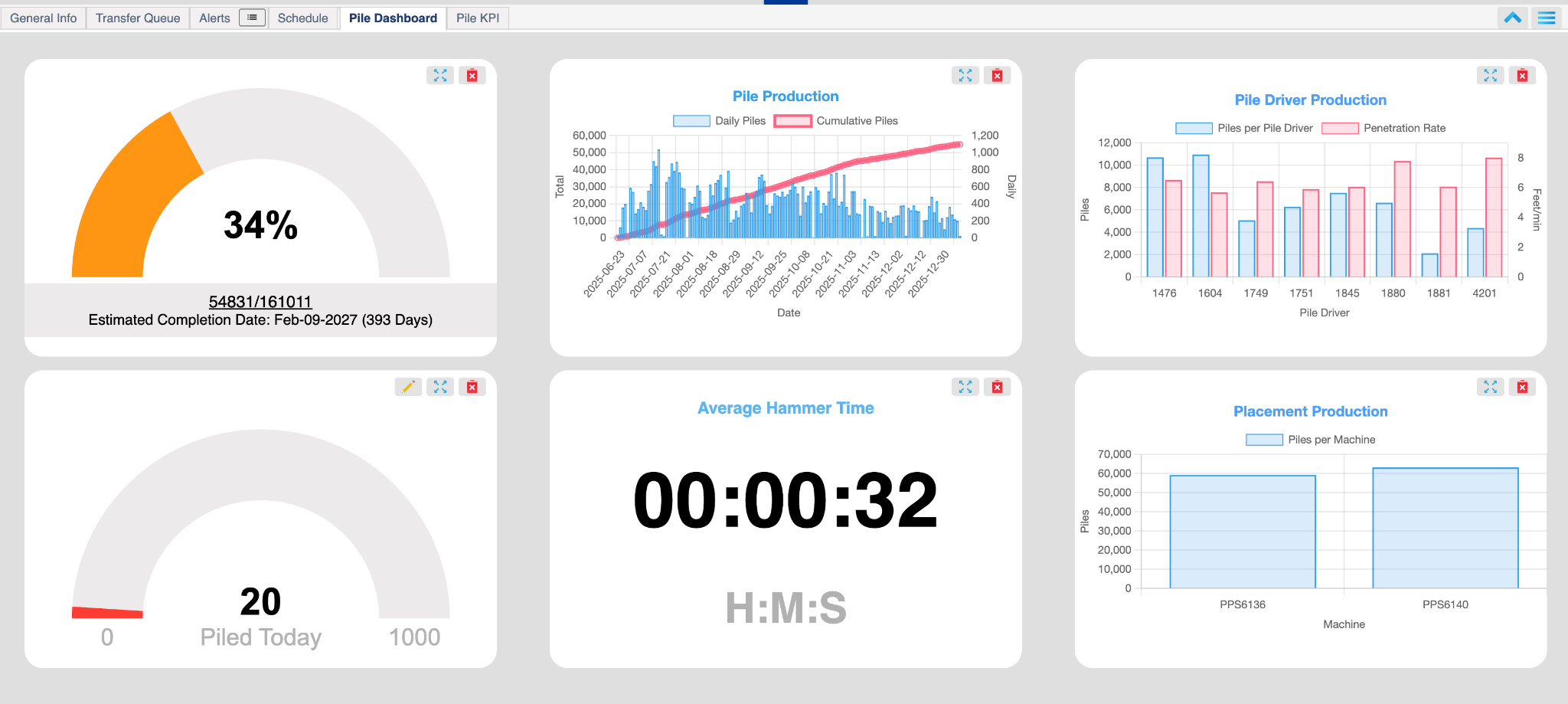

The PD Command map view opens to the Pile Dashboard bottom panel tab by default. The Pile dashboard tab is a customizable quick report on the current status of the pile site. The Pile dashboard is made up of tiles containing simple realtime productivity data.

The dashboard can display 6 tiles at a time. The tiles are arranged by clicking anywhere on the tile and dragging it to order them within the 2 x 3 grid.

Press the “Delete” icon on any tile to remove it. If there are fewer than 6 tiles on the dashboard an “Add” icon appears in the upper right corner of the dashboard. Press this icon to choose from the available tiles to add.

Some tiles have a target value for the day. These tiles have an “Edit” button. Press this edit button to adjust the target for the day. This target saves for the site’s dashboards.

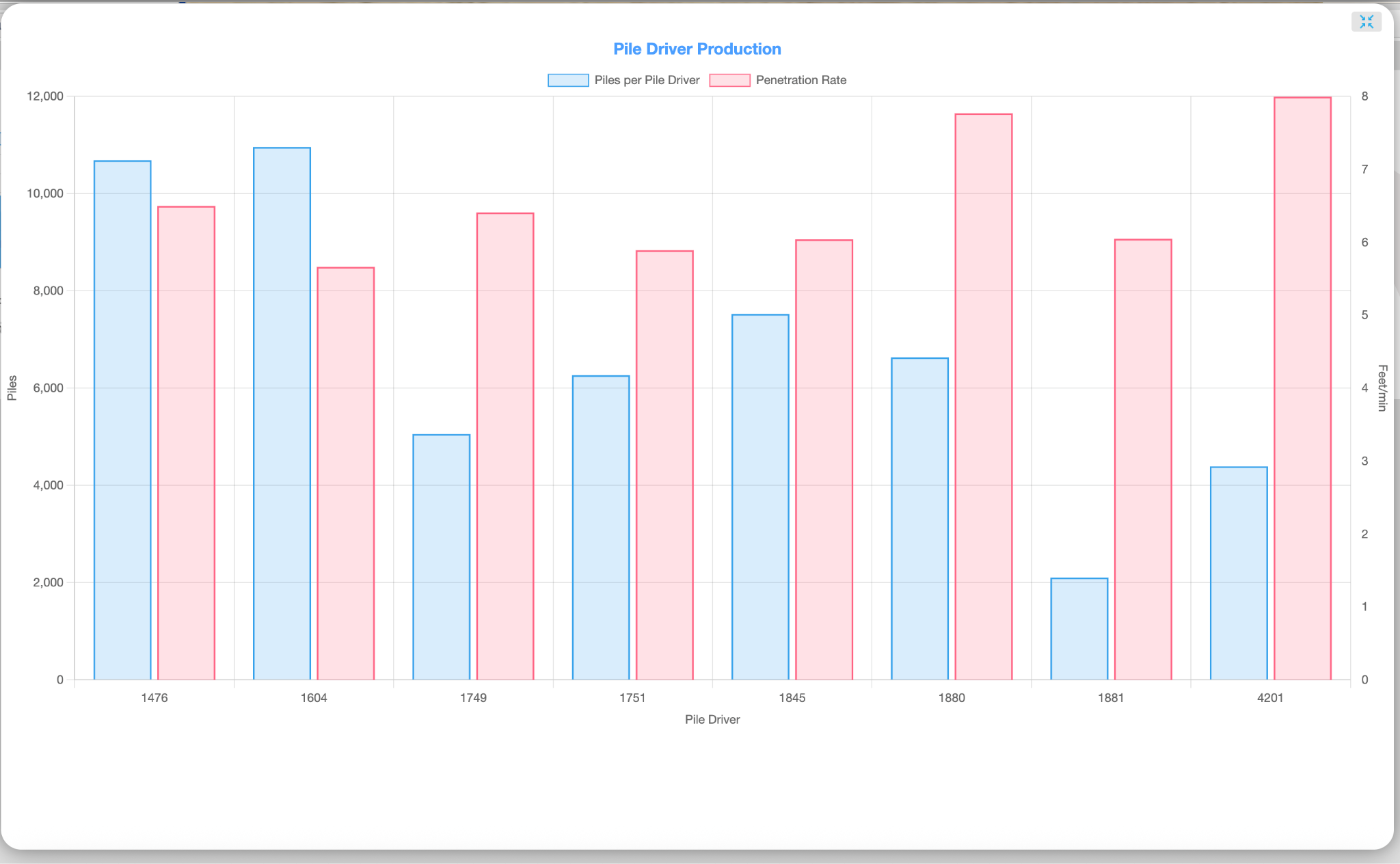

Press the “Expand” icon to blow up the tile to full screen.

All tiles update live regularly.

The current tile metrics are as follows.

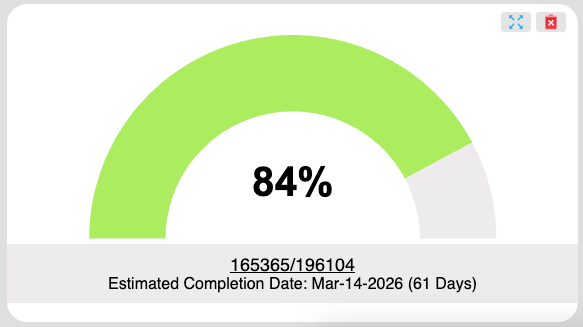

Estimated Completion - This tile displays the percent done the project is using the total number of pile designs divided by the number of driven piles. Then the average piles driven per day is calculated and Command projects the completion date based on how many more working days it would take to finish the remaining undriven pile designs.

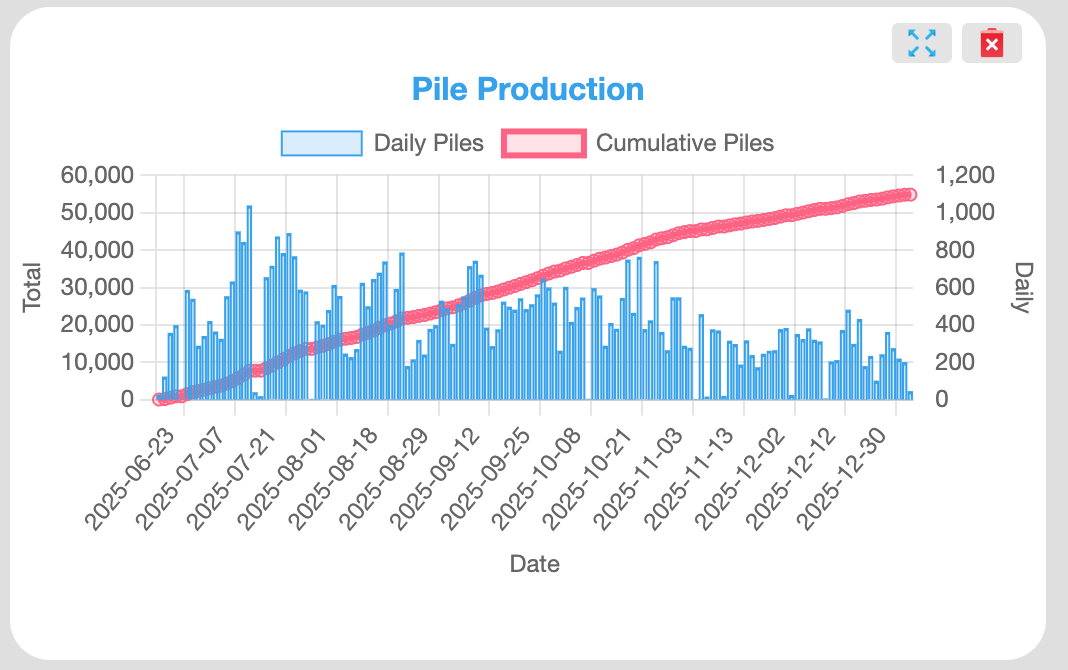

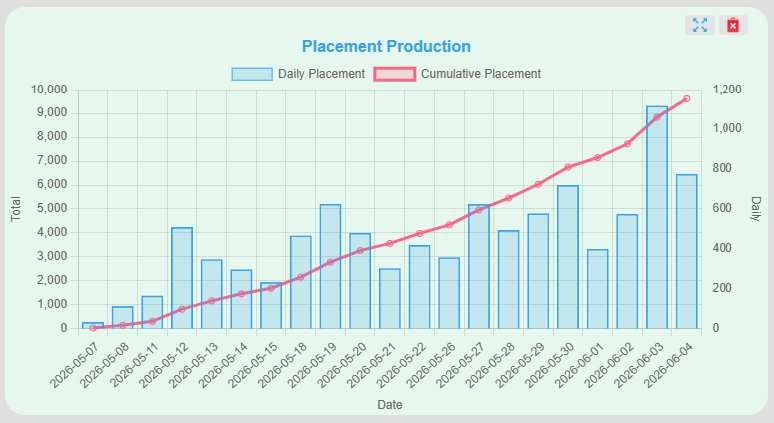

Pile Production - This graph represents the number of piles driven each day, and shows a cumulative trend line over the life of the site.

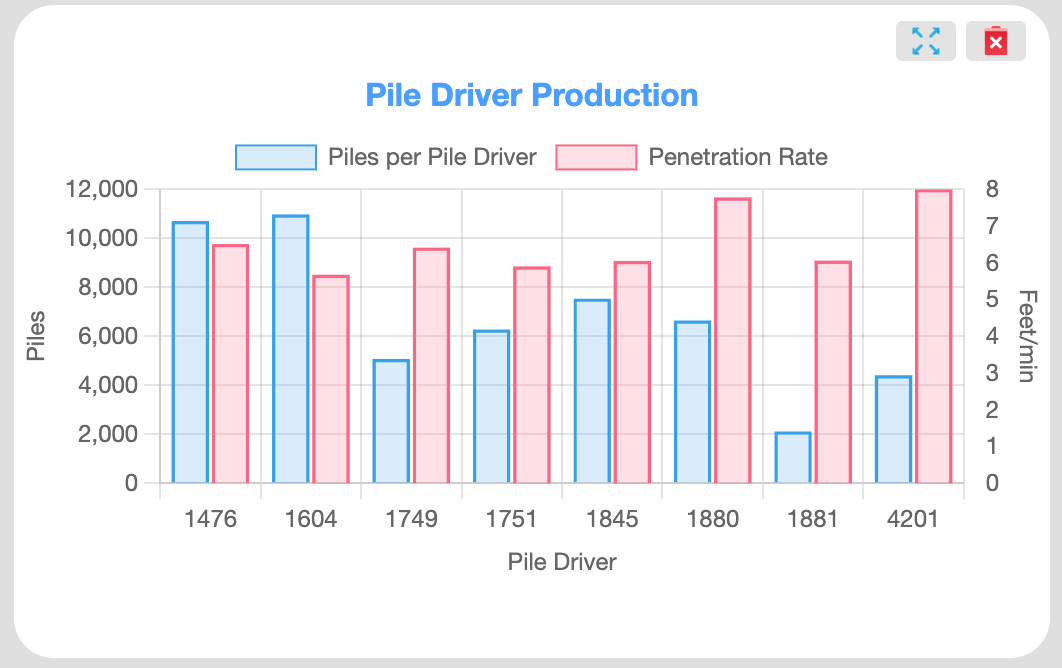

Pile Driver Production - This graph shows the total number of piles driven and the average penetration rate (Ft/M per minute) per machine.

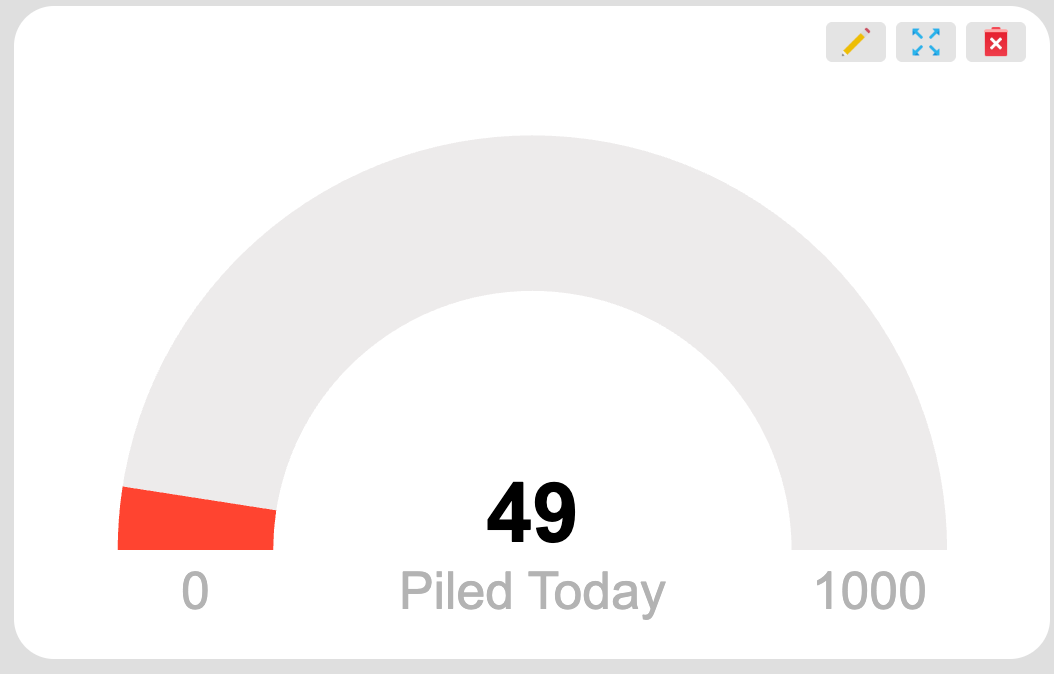

Piled Today - The total number of piles driven so far since 00:00 on today’s date.

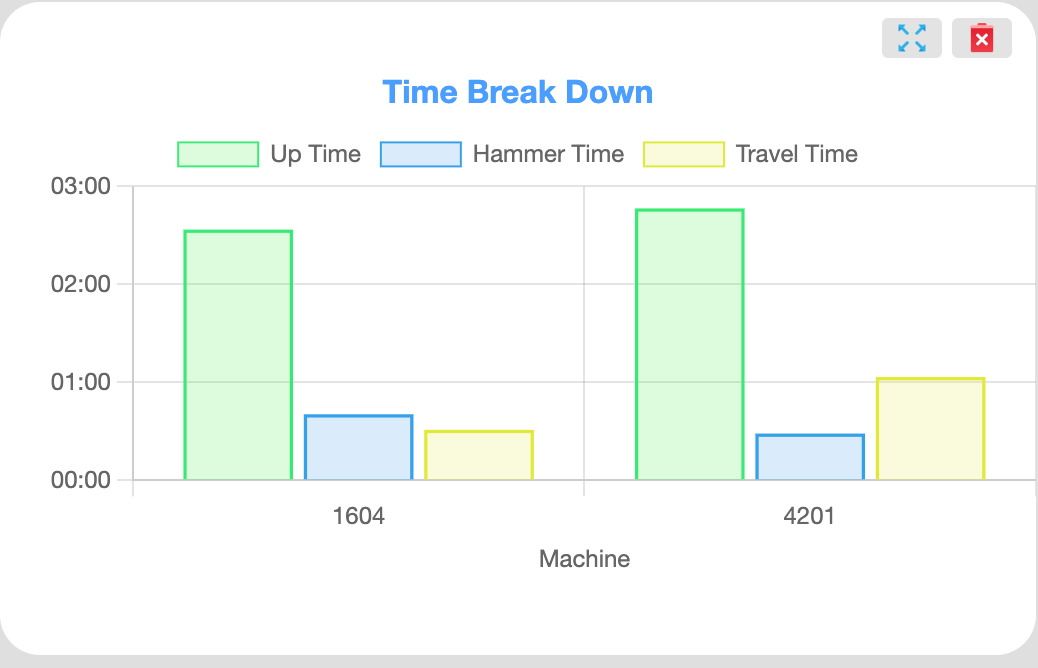

Pile Time Breakdown - the uptime, hammer time, and travel time per machine that has piled today.

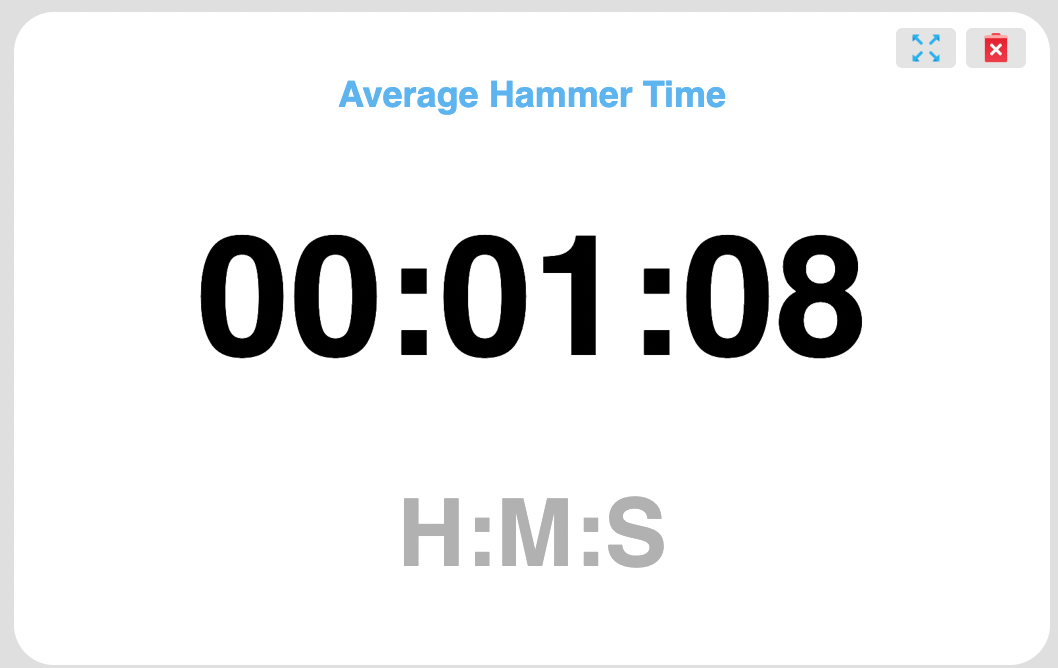

Average Hammer Time - the average time spent hammering per pile for all machines today.

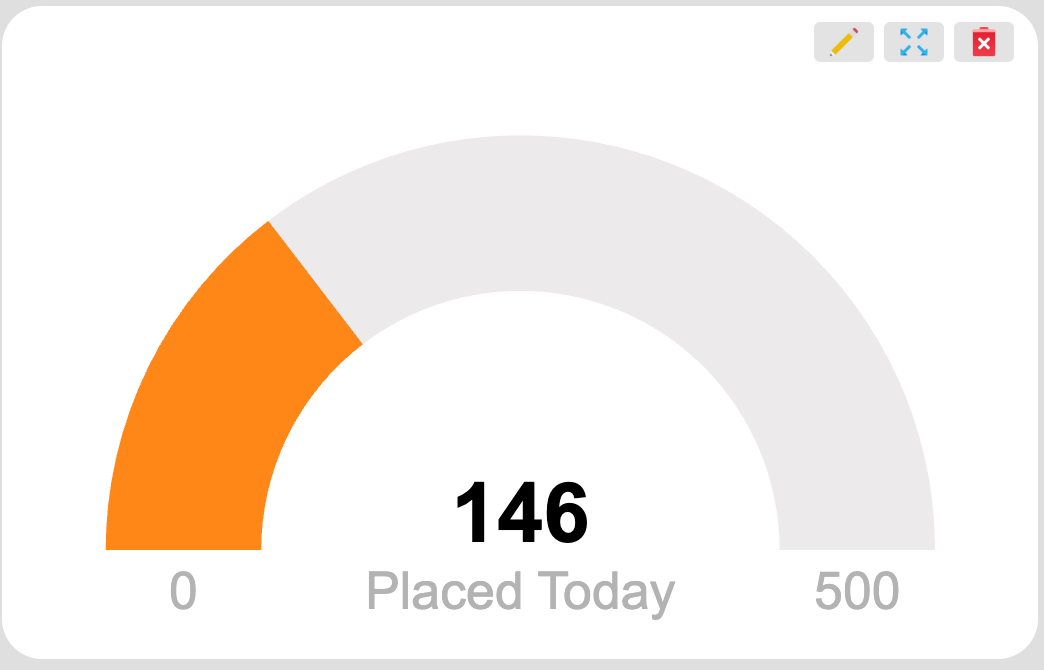

Piles Placed Today - The total number of piles placed by a PD Placement system today.

Pile Placement Production - Total piles placed per machine.
