Show
Toggle certain types of data on and off in reports.

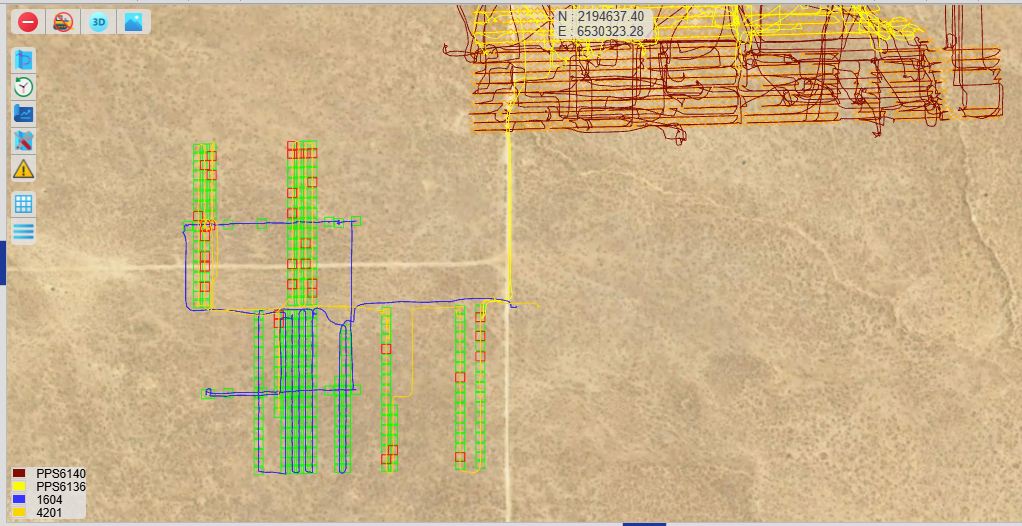

- Machine Paths - Plot the traces of the machines over the selected time period over the pile locations.
- Undriven piles - Toggle on to show designed piles with no as-builts.
- Only piles out of tolerance - Toggle on to see only piles that deviate from the design.
- Only piles refused - Toggled on shows only piles that exceed the tolerance for refusal (not driven far enough into the ground).
- Use Standard Deviation Filter - Eliminate any piles that may have been misplaced during import. Any piles more than 2 standard Deviations away are eliminated
- Max Travel Time -Eliminate any travel time that exceeds entered time. For example, if the operator takes a lunch break, but does not use a down or delay code
- Type (if defined in import) - Select the pile types to show.
- Description (if defined in import) - Select the pile descriptions to show.
